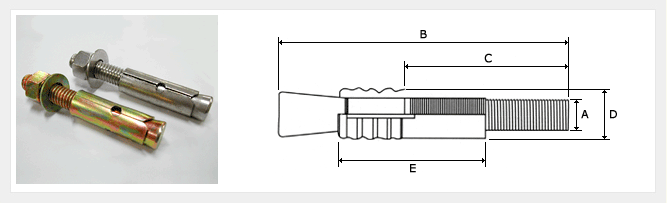

| 호칭경 (A) |
캡길이 (E) |
앙카길이 (B) |
적합드릴경 (D)
(mm) |
드릴깊이
(mm) | | 1/4" (M6) |
30 |
2" (50mm) |
10 |
33 | | 5/16" (M8) |
35 |
2-1/2" (60mm) |
12 |
38 | | 3/8" (M10) |
40 |
3" (70mm) |
14 |
44 | | 4" (100mm) | | 5" (125mm) | | 6" (150mm) | | 8" (200mm) | | 10" (250mm) | | 12" (300mm) | | 1/2" (M12) |
50 |
4" (100mm) |
17 |
55 | | 5" (125mm) | | 6" (150mm) | | 8" (200mm) | | 10" (250mm) | | 12" (300mm) | | 5/8" (M16) |
65 |
5" (125mm) |
22 |
65 | | 6" (150mm) | | 8" (200mm) | | 3/4" (M20) |
75 |
6" (150mm) |
25 |
85 | | 8" (200mm) | | 10" (250mm) | | 12" (300mm) |
|
|
